MY Series Premium Rental LED Display: 40% Faster Setup with 6kg Featherlight Cabinets & 5-Second Maintenance!
The MY series rental LED screen by Linsn LED showcases a new design that incorporates a range of aesthetic elements.
It features high-strength die-cast aluminum for improved performance and delivers exceptional high-definition visual quality.

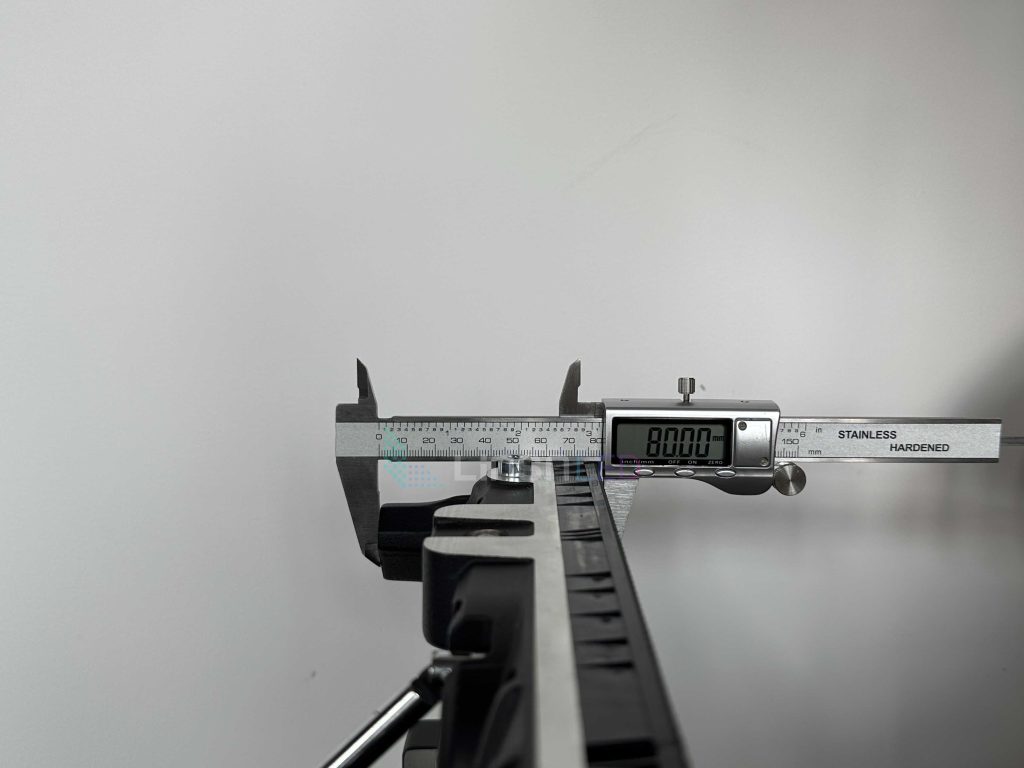

With a weight of just 6kg for the 500*500mm cabinet and 11kg for the 500*1000mm cabinet, plus a thickness of 80mm, this LED display offers excellent portability and stability.
Its lightweight design simplifies carrying, transportation, and installation, helping to significantly reduce labor costs.
Linsn LED features a cutting-edge design from a leading domestic team, combining innovative structural elements with modern aesthetics for an exceptional experience.
The control box is designed for quick, tool-free removal, and the back box (including power supply and control cards) can be easily detached for maintenance.

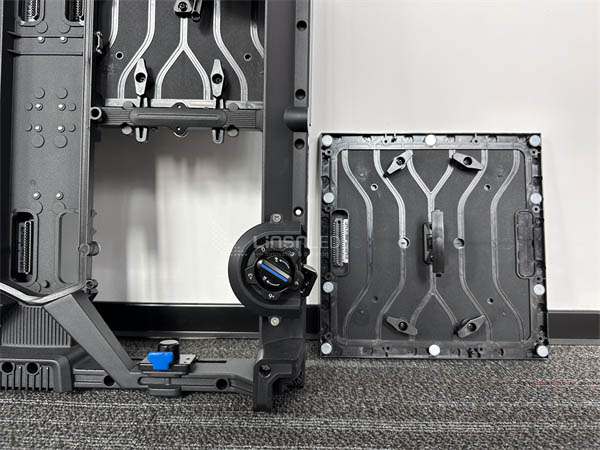

Panels are magnetically fixed and can be swiftly removed from the front within 5 seconds using simple tools.
The system allows for 90° right-angle LED display setups, making it perfect for unique architectural designs and specialized applications.
This flexibility ensures a seamless fit for various building structures and visual needs.
Our LED display features corner protectors to shield it from damage during transportation and installation.
This added protection enhances the display’s durability and extends its lifespan, ensuring reliable performance under various conditions.

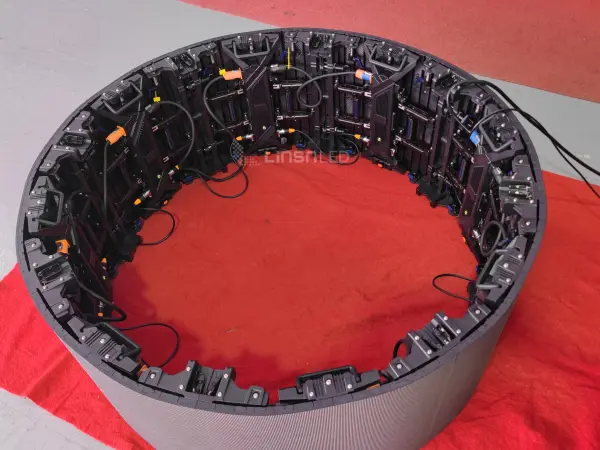

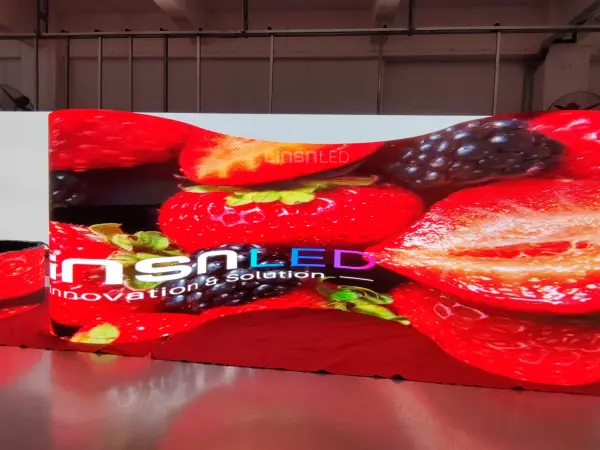

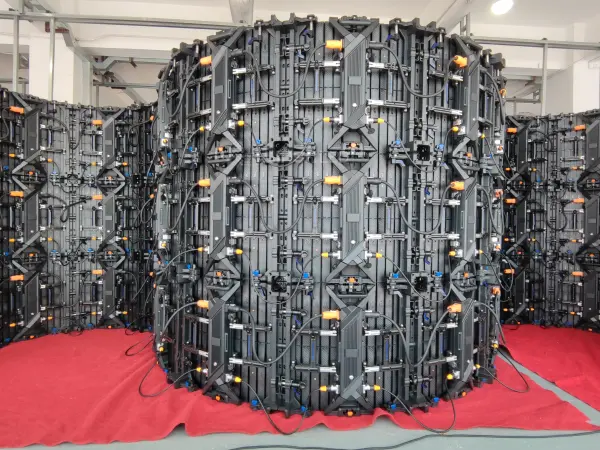

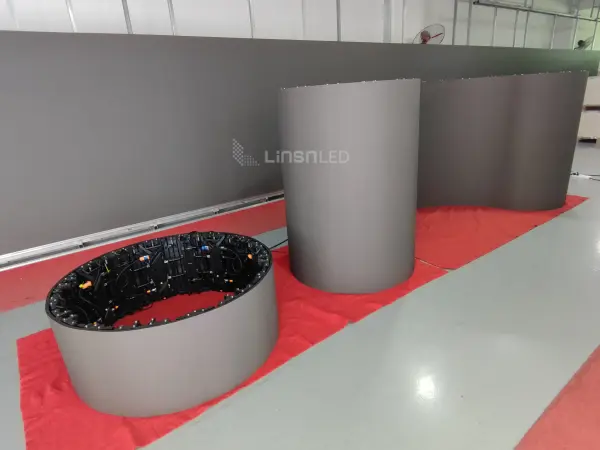

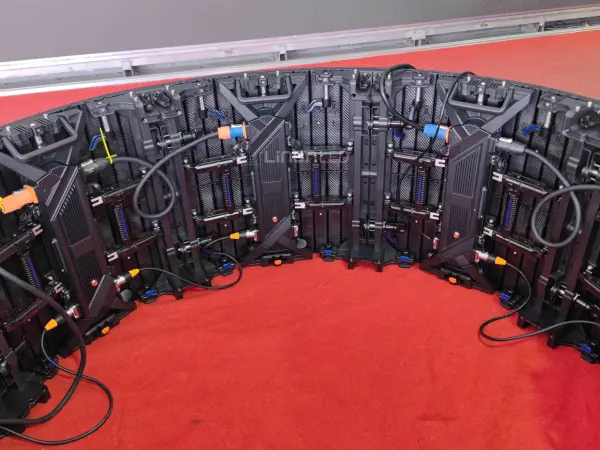

To accommodate diverse LED screen applications, the display can be configured for curved installations by adding a curve lock (Optional).
The screen supports curvature adjustments in 3° increments, ranging from -6° to 6°, with a total of 60 cabinets needed to create a full circular LED display.
| Pixel pitch | 1.5625mm | 1.953mm | 2.604mm | 2.976mm | 3.91mm |
| Pixels per cabinet(500*500mm) | 320×320 (HxV) | 256×256 (HxV) | 192×192 (HxV) | 168×168 (HxV) | 128×128 (HxV) |
| Pixels per cabinet(500*1000mm) | 320×640 (HxV) | 256×512 (HxV) | 192×384 (HxV) | 168×336 (HxV) | 128×256 (HxV) |
| LED lifetime | 100,000h | ||||
| Brightness | 600-800nits | ||||
| Module size | 250*250mm | ||||
| Module resolution | 160*160dots | 128*128dots | 96*96dots | 84*84dots | 64*64dots |
| Refresh rate | 3840-7,680Hz | ||||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | ||||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | ||||
| Brightness uniformity | >98% | ||||
| Dimming | 0-100% | ||||
| Grey Level | 14 bits | ||||
| Avg Power consumption | 270 W/m² | ||||
| Max Power consumption | 450 W/m² | ||||
| Operation power voltage | 100-240V/50-60Hz | ||||
| Operational temperature | -10°C to +40°C/14°F to 104°F | ||||
| Operational humidity | 10-80% | ||||
| IP rating | IP50 for indoor | ||||
| Dimensions | 500 x 500 x 80 mm/500 x 1000 x 80 mm (WxHxD) | ||||
| Weight | 6kg (500 x 500mm cabinet)/11kg (500 x 1000 mm cabinet) | ||||
| Serviceability | Frontal & rear service for indoor | ||||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | ||||
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixels per cabinet (500*500mm) | 192×192 (HxV) | 168×168 (HxV) | 128×128 (HxV) | 104×104 (HxV) |
| Pixels per cabinet (500*1000mm) | 192×384 (HxV) | 168×336 (HxV) | 128×256 (HxV) | 104×208 (HxV) |
| LED lifetime | 100,000h | |||
| Brightness | Outdoor: 4500-5000 nits | |||
| Module size | 250*250mm | |||
| Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Refresh rate | 3840-7,680Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 14 bits | |||
| Avg Power consumption | 384 W/m² | |||
| Max Power consumption | 640 W/m² | |||
| Operation power voltage | 100-240V/50-60Hz | |||
| Operational temperature | -10°C to +40°C/14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP65 for outdoor | |||
| Dimensions | 500 x 500 x 80 mm/500 x 1000 x 80 mm (WxHxD) | |||
| Weight | 6kg (500 x 500mm cabinet) / 11kg (500 x 1000mm cabinet) | |||
| Serviceability | Rear service for outdoor. | |||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||
500X500mm Cabinet Details
500X1000mm Cabinet Details
Double-Beveled Cabinet
Right-Beveled Cabinet
Left-Beveled Cabinet
Cabinet Back View
Front View
Power Box
MY 1000 Front View
MY 1000 Back View
MY500 Complete Screen
GOB LED Wall
MY500 Single Cabinet
MY1000 Back View
How to Install the Cabinets onto the Bracket
How to Assemble the MY500 Power Box
How to Install and Maintain
Back Maintenance Process
Maintenance Tool
How to Install and Maintain
Front Maintenance Process
