MX500/1000 Series

3840Hz rental LED display – IP65 waterproof, die-cast aluminum, fast setup. Ideal for stages & events.

Newest Rental LED Display Screen

Professional 500mm×500mm/1000mm Rental LED Display

≥ 3840Hz Ultra-Smooth Visuals

IP65 Waterproof for Outdoor Events

Quick Locks & Handles for Fast Setup

Supports Curved Installation (-10° to +10°) (Optional)

Hard-Connection Power Box

Tool-Free Die-Cast Aluminum Cabinet

Flexible Splicing & Curved Displays (Optional)

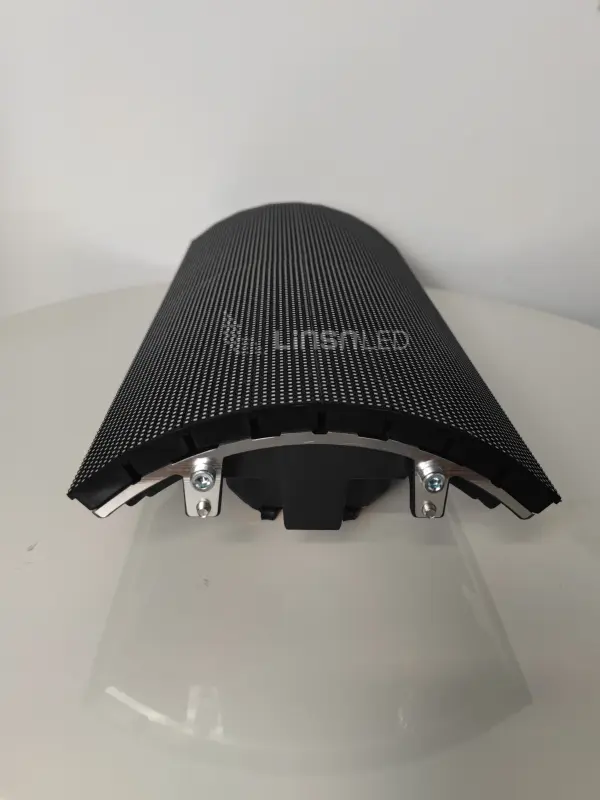

The MX series supports customizable curved configurations with adjustable angles from -10° to +10° (-10°, -7.5°, -5°, -2.5°, 0°, 2.5°, 5°, 7.5°, 10°).

This flexibility enables various creative displays including inner/outer arcs, cube screens, and U-shaped installations.

Rugged & Seamless Cabinet Design

The MX series combines an engineering plastic back shell with a die-cast aluminum cabinet, delivering excellent structural strength, minimal deformation, and superior flatness with tight seams.

500×500mm and 500×1000mm cabinets can be seamlessly spliced together, enabling various creative display configurations.

Enhanced Visual Performance

With a high refresh rate of ≥3840Hz and 14-bit grayscale, the MX delivers smooth, flicker-free visuals with vivid, accurate colors, ensuring excellent display quality for live shows and professional broadcasts.

Quick Installation & Maintenance

The MX series features fast-lock mechanisms and ergonomic handles on all sides, along with a tool-free power box design.

This plug-and-play system enables rapid setup, dismantling and maintenance – significantly reducing labor time and costs.

Tool-Free Power Box with Hard Connection

The MX series features a plug-and-play hard connection design with large handle-style locks for quick and secure power box installation and maintenance—saving time and labor.

IP65 Weatherproof & Silent Operation

The MX series features a fully enclosed, fanless die-cast aluminum cabinet with IP65 protection (front and rear), making it completely dustproof, waterproof, and silent—ideal for demanding indoor and outdoor applications in all weather conditions.

Anti-Collision Protection Design

The MX series cabinet features reinforced corners and a strengthened base edge, providing complete protection for LED modules during transport and handling—maximizing durability and collision resistance.

Specifications

MX500

MX1000

MX500

MX1000

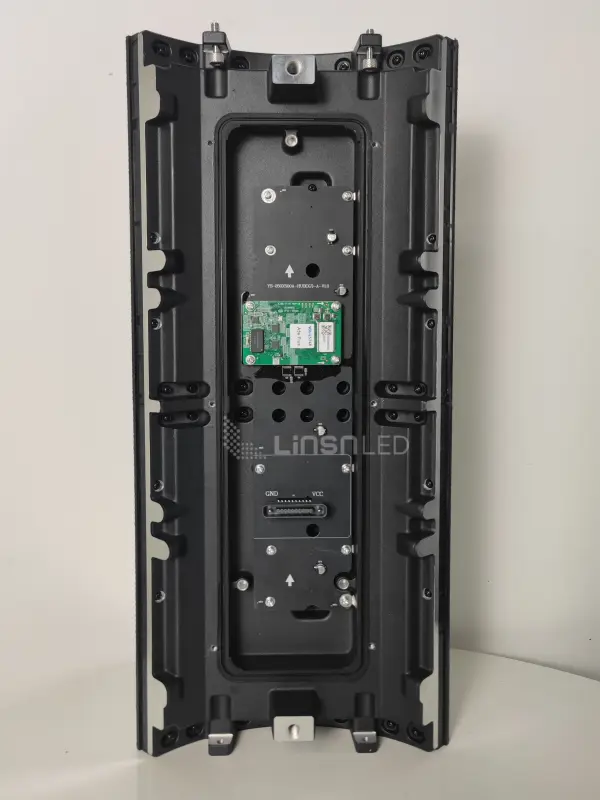

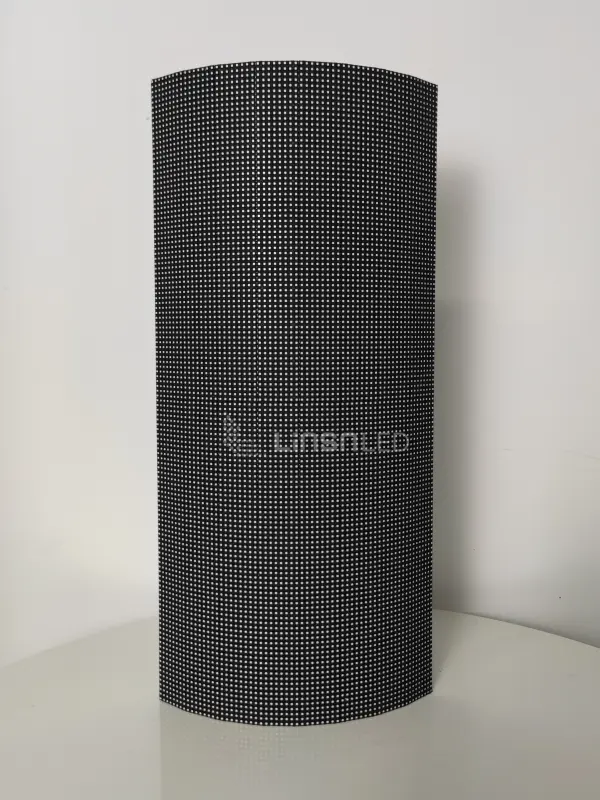

MX500 Curved LED Cabinet

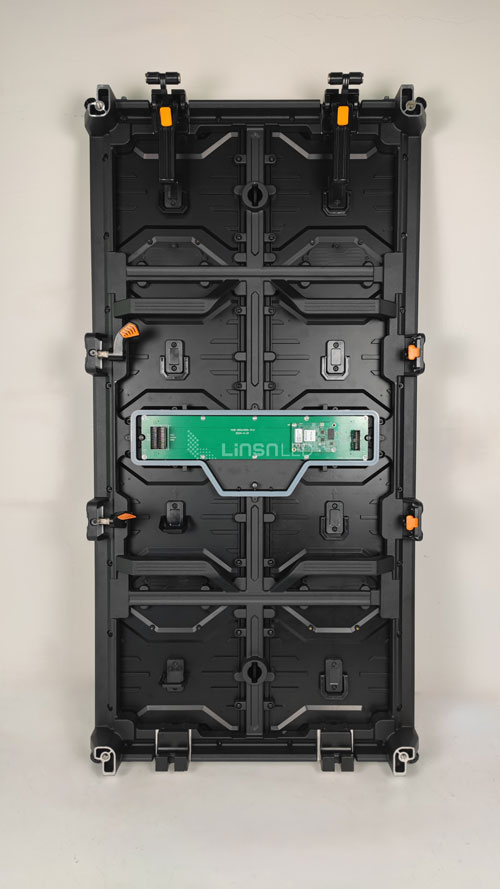

MX500-Cabinet-Details-2 — MX500 Cabinet Details

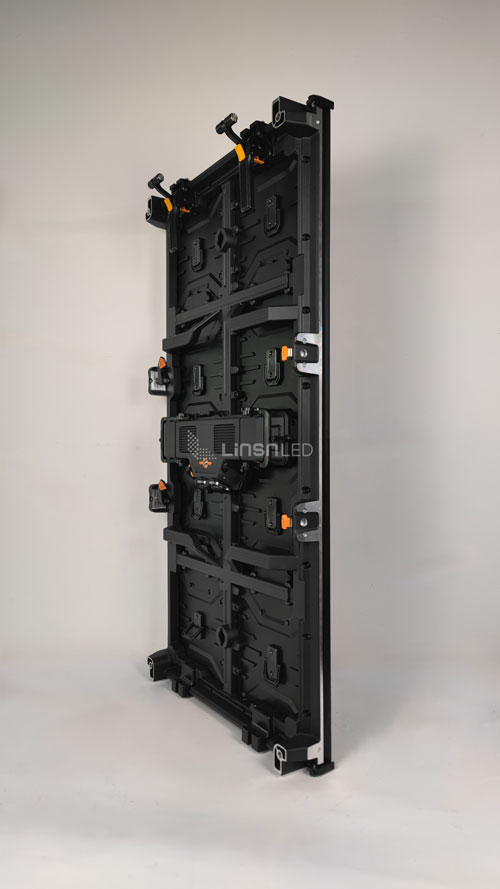

P2.976-MX500-LED-Display-Back-1-768x432 — P2.976 MX500 LED Display Back

Outdoor-P2.976-MX500-LED-Screen-768x432 — Outdoor P2.976 MX500 LED Screen

Outdoor-P2.976-MX500-LED-Screen-Back-768x432 — Outdoor P2.976 MX500 LED Screen Back

P2.976-MX500-Full-LED-Screen-768x432 — P2.976 MX500 Full LED Screen

P2.976-MX500-LED-Screen-768x432 — P2.976 MX500 LED Screen

P2.976 MX500-LED-Display-Back-2-768x432 — P2.976 MX500 LED Display Back

500X500mm LED Display Cabinet

500X1000mm LED Display Cabinet

Video Center

Linsn LED has a professional technical support team ready to assist you with any issues. Our support covers everything from installation and configuration to any other concerns related to LED displays. For assistance, please visit our contact us page.

Bookmark & Share

Parameter		Specification
Physical Parameters	LED Type	1415	1921
	Pixel Pitch (mm)	2.976	3.91
	Cabinet Size (W×H×D) (mm)	500×500×77	500×500×77
	Cabinet Resolution	168×168	128×128
	Cabinet Weight (kg)	8.4	8.4
	Cabinet Material	Die-cast aluminum	Die-cast aluminum
	Module Size (W×H) (mm)	250×500	250×500
Photoelectric Parameters	Brightness (nit)	4300	4500
	Refresh Rate (Hz)	7680	7680
	Color Temperature (K)	9000±1000	9000±1000
	Viewing Angle (H/V) (°)	140/140	140/140
	Driving Scan Mode	1/21	1/16
	AC Operating Voltage (V)	100-240	100-240
	Power (Max/Avg) (W/m²)	660/220	560/190
Application Parameters	Storage Temperature (°C)	﹣40~﹢60	﹣40~﹢60
	Operating Temperature (°C)	﹣20~﹢50	﹣20~﹢50
	Storage Humidity (RH)	10﹪~90﹪	10﹪~90﹪
	Operating Humidity (RH)	10﹪~90﹪	10﹪~90﹪
	Protection Level (Front/Rear)	IP65	IP65
	LED Lifespan (H)	100000	100000
	Module Maintenance Method	Front or rear	Front or rear
	Power & Other Maintenance Methods	Rear	Rear
	Installation Method	Rear	Rear

Parameter		Specification
Physical Parameters	LED Type	1415	1921
	Pixel Pitch (mm)	2.976	3.91
	Cabinet Size (W×H×D) (mm)	500×1000×77	500×1000×77
	Cabinet Resolution	168×336	128×256
	Cabinet Weight (kg)	12.5	12.5
	Cabinet Material	Die-cast aluminum	Die-cast aluminum
	Module Size (W×H) (mm)	250×500	250×500
Photoelectric Parameters	Brightness (nit)	4300	4500
	Refresh Rate (Hz)	7680	7680
	Color Temperature (K)	9000±1000	9000±1000
	Viewing Angle (H/V) (°)	140/140	140/140
	Driving Scan Mode	1/21	1/16
	AC Operating Voltage (V)	100-240	100-240
	Power (Max/Avg) (W/m²)	660/220	560/190
Application Parameters	Storage Temperature (°C)	﹣40~﹢60	﹣40~﹢60
	Operating Temperature (°C)	﹣20~﹢50	﹣20~﹢50
	Storage Humidity (RH)	10﹪~90﹪	10﹪~90﹪
	Operating Humidity (RH)	10﹪~90﹪	10﹪~90﹪
	Protection Level (Front/Rear)	IP65	IP65
	LED Lifespan (H)	100000	100000
	Module Maintenance Method	Front or rear	Front or rear
	Power & Other Maintenance Methods	Rear	Rear
	Installation Method	Rear	Rear
